16-bit dsPIC™ microcontroller featuring 256KB FLASH memory and 16KB RAM. This surface mount device offers a 7.37MHz maximum frequency, 21 I/Os, and multiple communication interfaces including I2C, SPI, CAN, and UART. Integrated peripherals include 11 ADC channels and 8 PWM channels, with 9 timers/counters. Operates from 4.5V to 5.5V within a -40°C to 85°C temperature range, housed in a SOIC package.
Frequency7.37MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33EV256GM102-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
dsPIC
Data Bus Width
16b
Density
256KB
Height
2.35mm
Interface
I2C, SPI, CAN, UART, IrDA, USART, LIN
Lead Free
Lead Free
Length
17.9mm
Max Frequency
7.37MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of ADC Channels
11
Number of I/Os
21
Number of I2C Channels
1
Number of PWM Channels
8
Number of SPI Channels
2
Number of Timers/Counters
9
Number of UART Channels
2
Operating Supply Voltage
5V
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 33EV
Weight
0.078125oz
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33EV256GM102-I/SO Datasheet
Download the complete datasheet for Microchip DSPIC33EV256GM102-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

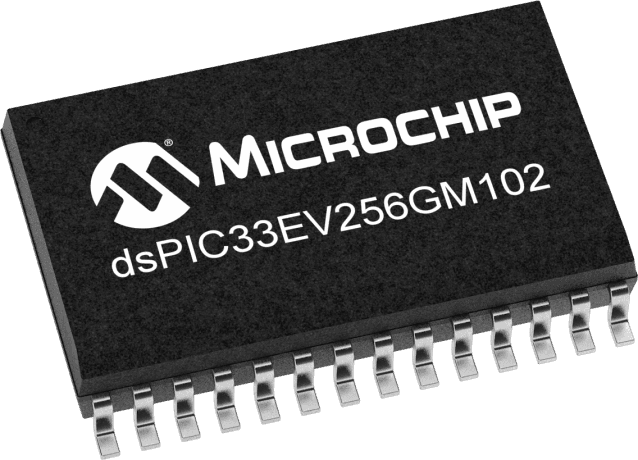

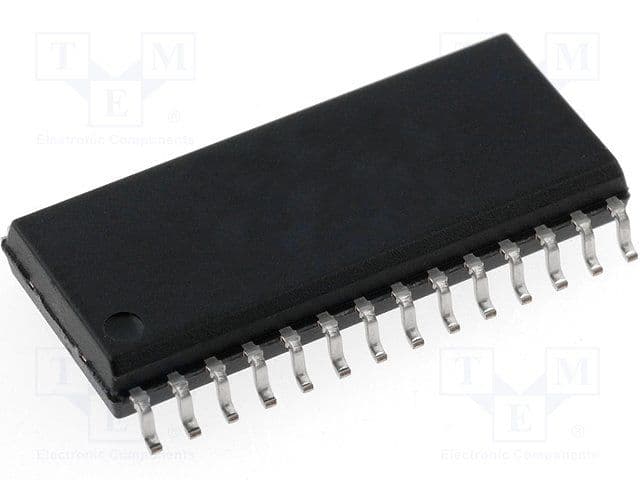

Product Images
