16-bit dsPIC™ microcontroller featuring a 40MHz core frequency. Surface mountable in a SOIC package, this MCU offers 6KB of FLASH memory and 256B of RAM. Integrated peripherals include I2C, SPI, UART, USART, IrDA interfaces, 3 timers/counters, and a watchdog timer. Operating voltage ranges from 3V to 3.6V, with an operating temperature range of -40°C to 85°C. Includes Brown-out Detect/Reset, POR, and PWM capabilities.
Frequency40MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ06GS101T-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
40MHz
Interface
I2C, SPI, IrDA, UART, USART
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
6KB
Memory Type
FLASH,
Min Supply Voltage
3V
Mount
Surface Mount
Number of Programmable I/O
13
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
1100
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
dsPIC™ 33F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ06GS101T-I/SO Datasheet
Download the complete datasheet for Microchip DSPIC33FJ06GS101T-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

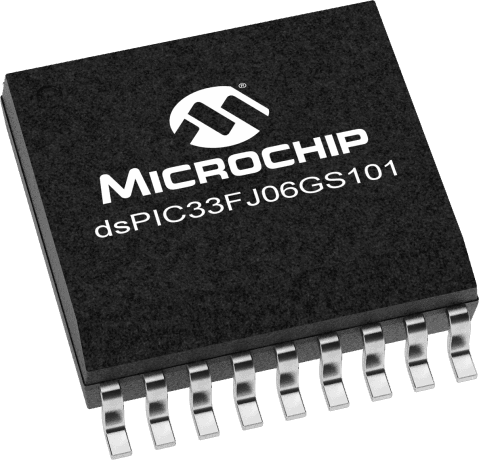

Product Images
