16-bit digital signal processor (DSP) microcontroller featuring a 40MHz core frequency and 6KB of FLASH memory. This surface-mount device offers 1KB RAM, 21 programmable I/O pins, and integrated peripherals including I2C, SPI, UART, and PWM. Operating from a 3V to 3.6V supply, it supports a wide temperature range of -40°C to 125°C. The SOIC package is lead-free and RoHS compliant.
Frequency40MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ06GS202-E/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
40MHz
Interface
I2C, SPI, IrDA, UART, USART
Max Frequency
40MHz
Max Operating Temperature
125°C
Max Supply Voltage
3.6V
Memory Size
6KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of Programmable I/O
21
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, dsPIC™ 33F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ06GS202-E/SO Datasheet
Download the complete datasheet for Microchip DSPIC33FJ06GS202-E/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

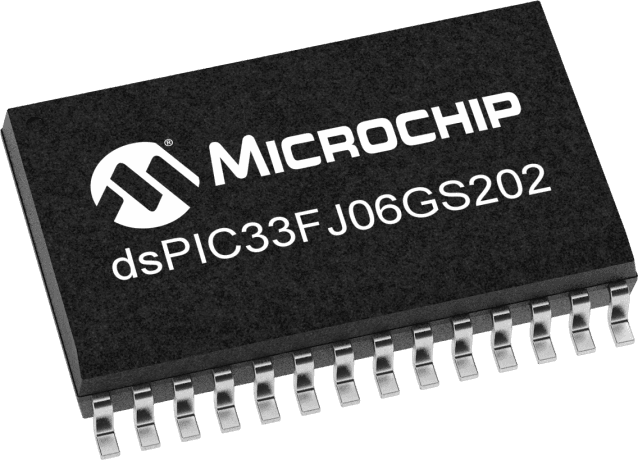

Product Images
