16-bit dsPIC Digital Signal Processor (DSP) microcontroller featuring a 40 MHz core frequency. This through-hole component offers 6KB of FLASH memory and 1KB of RAM, supporting I2C, SPI, IrDA, UART, and USART interfaces. Operating from 3V to 3.6V, it includes 21 programmable I/O pins, 3 timers/counters, and peripherals like Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. Packaged in a 28-pin DIP, it operates across a -40°C to 125°C temperature range and is RoHS compliant.
Frequency40MHz
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ06GS202-E/SP technical specifications.
General
Package/Case
DIP
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
40MHz
Interface
I2C, SPI, IrDA, UART, USART
Max Frequency
40MHz
Max Operating Temperature
125°C
Max Supply Voltage
3.6V
Memory Size
6KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Through Hole
Number of Programmable I/O
21
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, dsPIC™ 33F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ06GS202-E/SP Datasheet
Download the complete datasheet for Microchip DSPIC33FJ06GS202-E/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

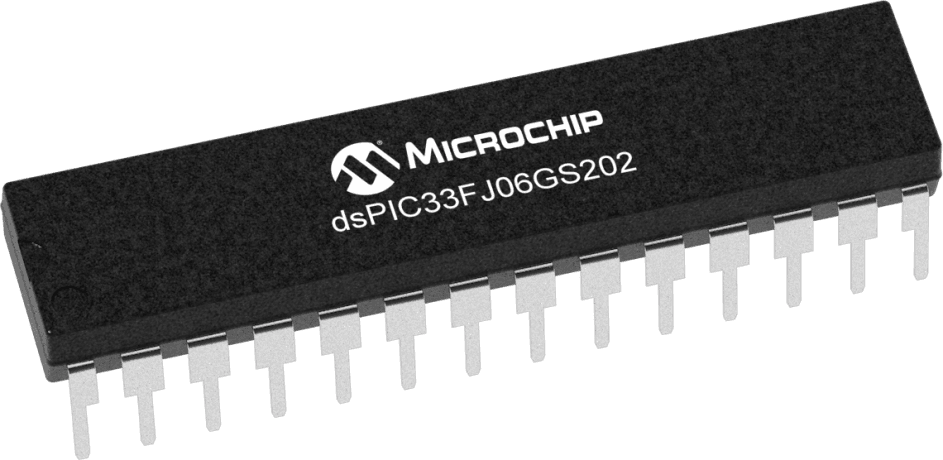

Product Images
