16-bit dsPIC microcontroller featuring 6KB FLASH memory and 1KB RAM. Operates at up to 40MHz with a 3.3V supply voltage. Offers 21 programmable I/Os, 8 ADC channels, and multiple communication interfaces including I2C, SPI, UART, and USART. Includes integrated peripherals such as PWM, WDT, and Brown-out Detect/Reset. Packaged in a lead-free SOIC case.
Frequency40MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ06GS202A-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
dsPIC
Data Bus Width
16b
Density
6KB
Frequency
40MHz
Height
2.35mm
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
17.9mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Memory Size
6KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Number of ADC Channels
8
Number of I/Os
21
Number of I2C Channels
1
Number of Programmable I/O
21
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
2
Number of UART Channels
1
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 33F
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ06GS202A-I/SO Datasheet
Download the complete datasheet for Microchip DSPIC33FJ06GS202A-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

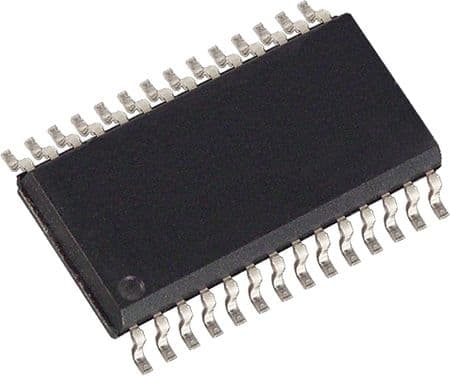

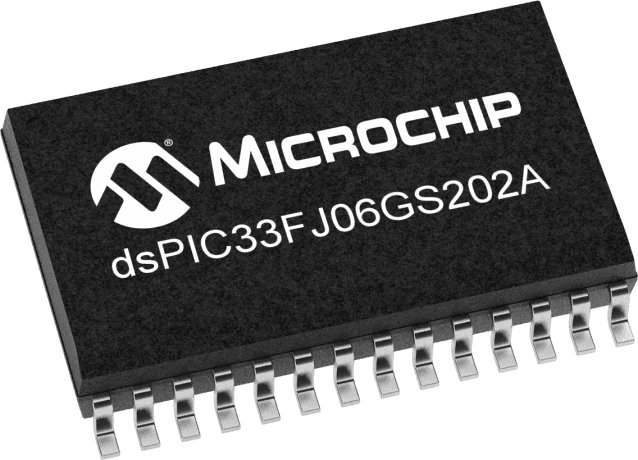

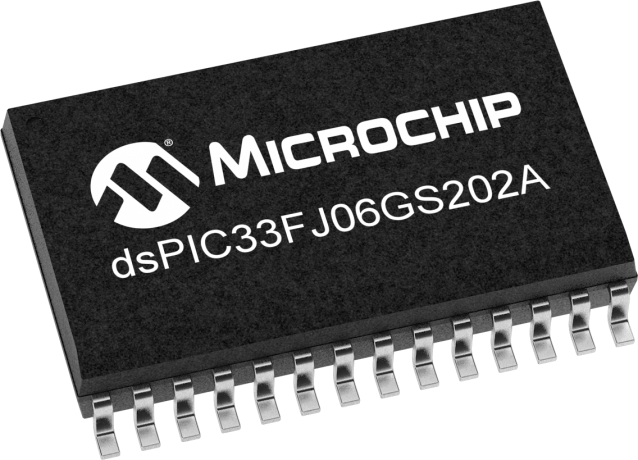

Product Images
