16-bit dsPIC RISC microcontroller featuring 9KB Flash memory and 1KB RAM. Operates at up to 40MHz with a 3.3V supply voltage, ranging from 3V to 3.6V. Includes I2C, SPI, IrDA, and UART interfaces, along with 8 ADC channels and 21 programmable I/Os. Packaged in a 28-pin SSOP with integrated peripherals like PWM and Watchdog Timer.
Frequency40MHz
PackageSSOP
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ09GS302-I/SS technical specifications.
General
| Package/Case | SSOP |
| Core Architecture | dsPIC |
| Data Bus Width | 16b |
| Density | 9KB |
| Frequency | 40MHz |
| Height | 1.85mm |
| Interface | I2C, SPI, IrDA, UART, USART |
| Lead Free | Lead Free |
| Length | 10.5mm |
| Max Frequency | 40MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 9KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Number of ADC Channels | 8 |
| Number of I/Os | 21 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 21 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 2 |
| Number of UART Channels | 1 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | Internal |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 1KB |
| Reach SVHC Compliant | No |
| Series | dsPIC™ 33F |
| Watchdog Timer | Yes |
| Width | 5.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip DSPIC33FJ09GS302-I/SS Datasheet
Download the complete datasheet for Microchip DSPIC33FJ09GS302-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

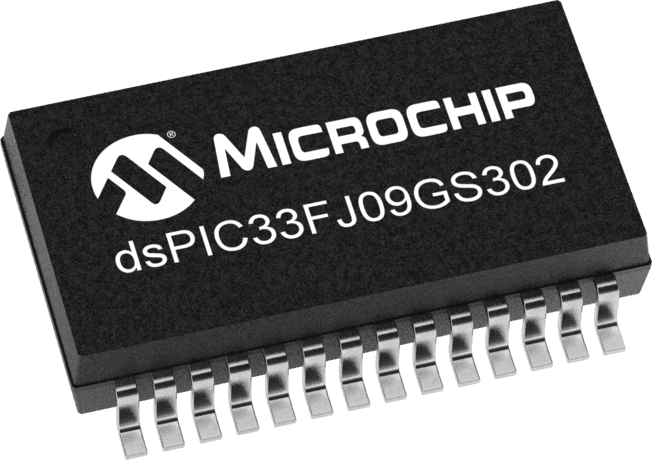

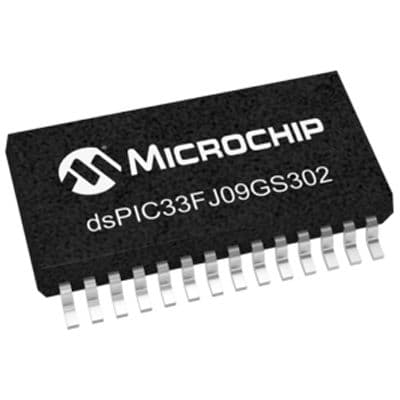

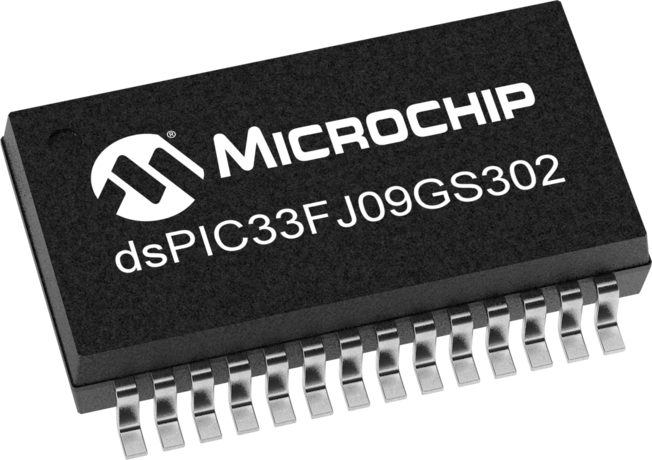

Product Images
