16-bit dsPIC microcontroller featuring 128KB FLASH memory and 16KB RAM. Operates at up to 40MHz with an internal oscillator. Offers 85 programmable I/Os and supports I2C, SPI, UART, IrDA, and USART interfaces. Includes peripherals such as PWM, WDT, DMA, and Brown-out Detect/Reset. Packaged in a TQFP surface mount configuration, suitable for operation between -40°C and 85°C.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ128GP310-I/PF technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
128KB
Frequency
40MHz
Interface
I2C, SPI, UART, IrDA, USART
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
85
Number of Programmable I/O
85
Number of Timers/Counters
9
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
Series
dsPIC™ 33F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ128GP310-I/PF Datasheet
Download the complete datasheet for Microchip DSPIC33FJ128GP310-I/PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

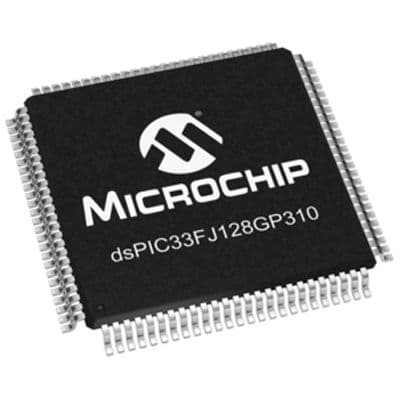

Product Images
