16-bit dsPIC microcontroller featuring 128KB FLASH memory and 16KB RAM. Operates at up to 40MHz with an internal oscillator. Offers 85 programmable I/Os and supports I2C, SPI, UART, IrDA, USART, and LIN interfaces. Includes peripherals such as PWM, WDT, DMA, Brown-out Detect/Reset, and POR. Packaged in a 100-pin TQFP (PQFP100) for surface mounting, with an operating temperature range of -40°C to 85°C and a supply voltage of 3V to 3.6V.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ128GP310-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
128KB
Frequency
40MHz
Interface
I2C, SPI, UART, IrDA, USART, LIN
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
85
Number of Programmable I/O
85
Number of Timers/Counters
9
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
119
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
Series
dsPIC™ 33F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ128GP310-I/PT Datasheet
Download the complete datasheet for Microchip DSPIC33FJ128GP310-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

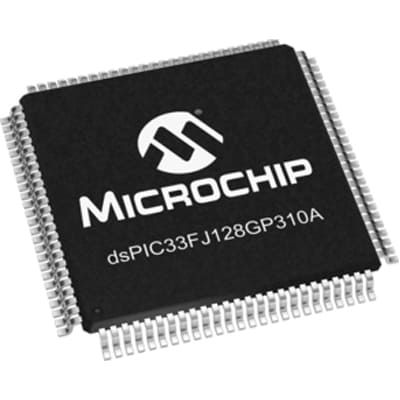

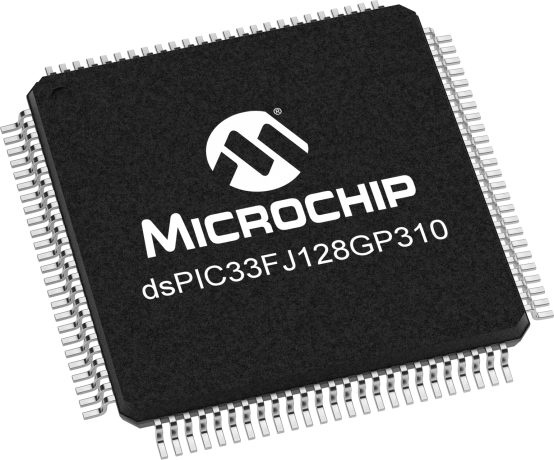

Product Images
