16-bit dsPIC™ microcontroller featuring 128KB FLASH memory and 8KB RAM. Operates at up to 40MHz with integrated I2C, SPI, IrDA, UART, and USART interfaces. Includes 5 timers/counters, 21 programmable I/O pins, and peripherals such as PWM, WDT, and DMA. Designed for surface mount installation in a SOIC package, with an operating voltage range of 2.7V to 3.9V and an extended temperature range of -40°C to 125°C.
Frequency40MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ128MC202-E/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
40MHz
Interface
I2C, SPI, IrDA, UART, USART
Max Frequency
40MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.9V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Programmable I/O
21
Number of Timers/Counters
5
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, dsPIC™ 33F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ128MC202-E/SO Datasheet
Download the complete datasheet for Microchip DSPIC33FJ128MC202-E/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

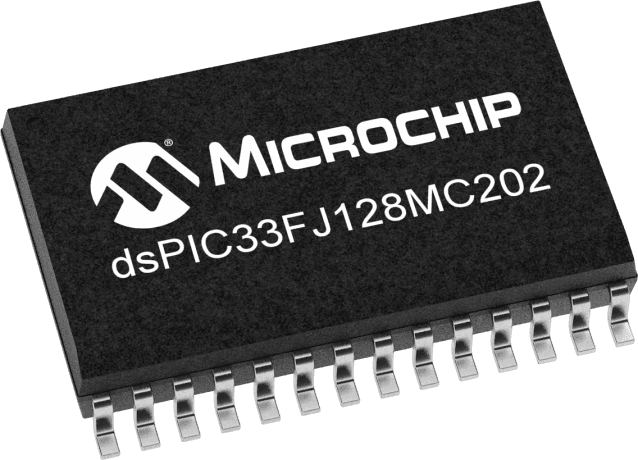

Product Images
