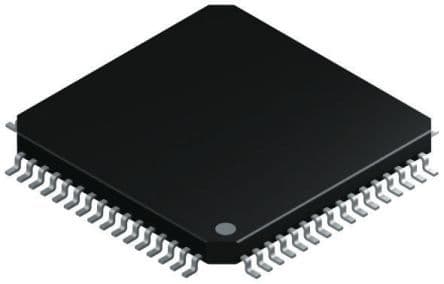

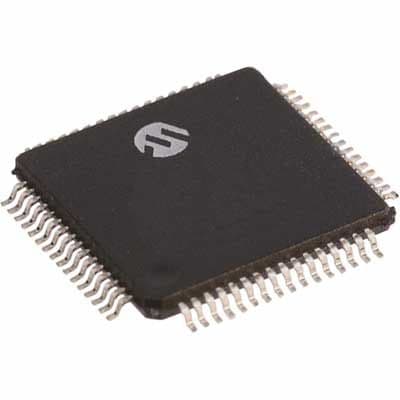

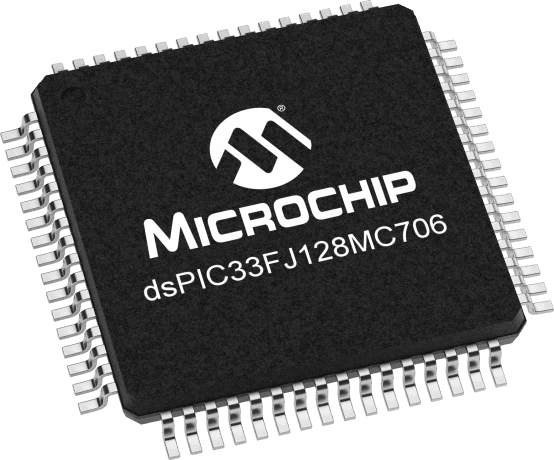

DSPIC33FJ128MC706-I/PT

16-Bit dsPIC MCU, 128KB Flash, 40MHz, TQFP-64

16-bit dsPIC™ microcontroller featuring 128KB FLASH memory and 16KB RAM. Operates at up to 40MHz with a 3.3V supply voltage, supporting a temperature range of -40°C to 85°C. Offers 53 I/Os, including 16 ADC channels, 8 PWM channels, and multiple communication interfaces like I2C, SPI, CAN, and UART. Packaged in a 64-pin TQFP (10x10x1.05mm) for surface mounting, this RoHS compliant component includes integrated peripherals such as DMA, WDT, and POR.

Frequency40MHz

PackageTQFP

MountingSurface Mount

Quick Jump:

Technical Specifications

Microchip DSPIC33FJ128MC706-I/PT technical specifications.

General

Package/Case	TQFP
Core Architecture	dsPIC
Data Bus Width	16b
Density	128KB
Frequency	40MHz
Height	1.05mm
Interface	I2C, SPI, CAN, UART, IrDA, USART, LIN
Lead Free	Lead Free
Lead Pitch	0.5mm
Length	10mm
Max Frequency	40MHz
Max Operating Temperature	85°C
Max Supply Voltage	3.6V
Memory Size	128KB
Memory Type	FLASH,
Min Operating Temperature	-40°C
Min Supply Voltage	3V
Mount	Surface Mount
Number of A/D Converters	2
Number of ADC Channels	16
Number of Bits	16
Number of I/Os	53
Number of I2C Channels	2
Number of Programmable I/O	85
Number of PWM Channels	8
Number of SPI Channels	2
Number of Timers/Counters	9
Number of UART Channels	2
Operating Supply Voltage	3.3V
Oscillator Type	Internal
Package Quantity	160
Packaging	Tray
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C
Radiation Hardening	No
RAM Size	16KB
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	dsPIC™ 33F
Termination	SMD/SMT
Watchdog Timer	Yes
Width	10mm
