16-bit dsPIC™ microcontroller featuring 128KB FLASH memory and 16KB RAM. Operates at up to 40MHz with a 3V to 3.6V supply voltage. Includes multiple interfaces such as I2C, SPI, UART, USART, CAN, and IrDA, along with peripherals like PWM, WDT, DMA, and Brown-out Detect/Reset. Packaged in a 28-pin DIP for through-hole mounting, this lead-free component is suitable for automotive applications.
Frequency40MHz
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ128MC802-E/SP technical specifications.
General
Package/Case
DIP
Core Architecture
dsPIC
Data Bus Width
16b
Density
128KB
Frequency
40MHz
Height
3.3mm
Interface
I2C, SPI, IrDA, UART, USART, CAN
Lead Free
Lead Free
Length
34.67mm
Max Frequency
40MHz
Max Operating Temperature
125°C
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Through Hole
Number of I/Os
21
Number of I2C Channels
1
Number of Programmable I/O
21
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, dsPIC™ 33F
Watchdog Timer
Yes
Width
7.24mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ128MC802-E/SP Datasheet
Download the complete datasheet for Microchip DSPIC33FJ128MC802-E/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

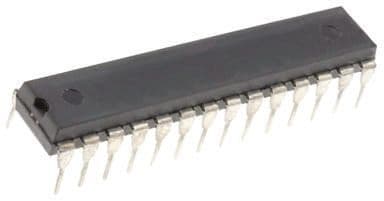

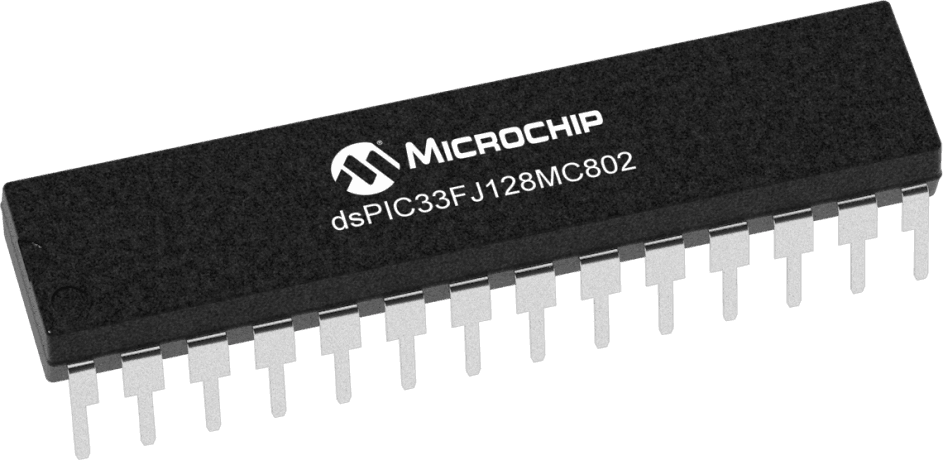

Product Images
