16-bit dsPIC microcontroller featuring 128KB FLASH memory and 16KB RAM, operating at up to 40MHz. This surface-mount device is housed in a 44-pin TQFP package (10x10x1mm) and supports multiple interfaces including I2C, SPI, CAN, IrDA, UART, USART, and LIN. Integrated peripherals include PWM, WDT, DMA, and brown-out detection. It operates from a 3V to 3.6V supply voltage and is RoHS compliant.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ128MC804-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
128KB
Frequency
40MHz
Height
1mm
Interface
I2C, SPI, CAN, IrDA, UART, USART, LIN
Lead Free
Lead Free
Length
10mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
35
Number of I2C Channels
1
Number of Programmable I/O
35
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
160
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC33F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ128MC804-I/PT Datasheet
Download the complete datasheet for Microchip DSPIC33FJ128MC804-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

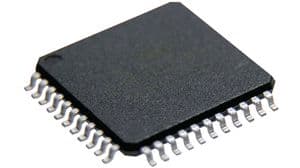

Product Images
