16-bit dsPIC microcontroller featuring 128KB FLASH memory and 16KB RAM. Operates at a maximum frequency of 40MHz with a 2.7V to 3.9V supply voltage. Offers 35 programmable I/Os and multiple interfaces including I2C, SPI, UART, USART, and CAN. Includes peripherals such as PWM, WDT, DMA, and brown-out detection. Packaged in a 44-pin TQFP for surface mounting.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ128MC804T-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
40MHz
Interface
I2C, SPI, IrDA, UART, USART, CAN
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.9V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of I/Os
35
Number of Programmable I/O
35
Number of Timers/Counters
5
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
1200
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
16KB
RoHS Compliant
Yes
Series
dsPIC™ 33F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ128MC804T-I/PT Datasheet
Download the complete datasheet for Microchip DSPIC33FJ128MC804T-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

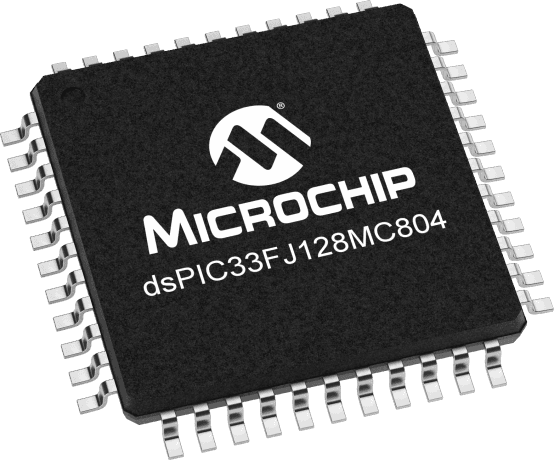

Product Images
