16-bit dsPIC microcontroller featuring 40MHz operation and 12KB FLASH memory. This through-hole component offers 13 programmable I/O pins, 1KB RAM, and integrated peripherals including PWM and WDT. Supports I2C, SPI, UART, and USART interfaces, operating from 2.7V to 3.9V with an internal oscillator. Designed for automotive applications with an operating temperature range of -40°C to 125°C.
Frequency40MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ12GP201-E/P technical specifications.
General
Package/Case
PDIP
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
40MHz
Interface
I2C, SPI, UART, IrDA, USART
Max Frequency
40MHz
Max Operating Temperature
125°C
Max Supply Voltage
3.9V
Memory Size
12KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Through Hole
Number of Programmable I/O
13
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
25
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, dsPIC™ 33F
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ12GP201-E/P Datasheet
Download the complete datasheet for Microchip DSPIC33FJ12GP201-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

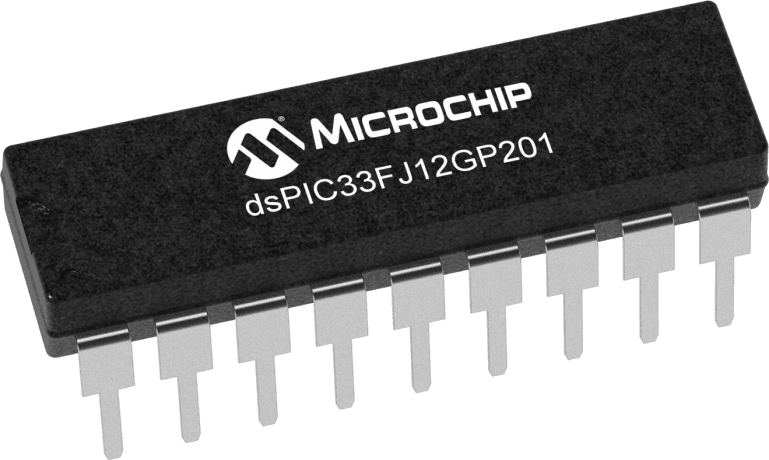

Product Images
