16-bit dsPIC microcontroller featuring 12KB FLASH memory and 1KB RAM. Operates at up to 40MHz with a 16-bit address and data bus. Offers 21 programmable I/Os, 10 A/D channels, 2 PWM channels, and multiple communication interfaces including I2C, SPI, and UART. Packaged in a lead-free SOIC-28 surface-mount case, suitable for operation between -40°C and 85°C.
Frequency40MHz
PackageSOIC
Current38mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ12GP202-I/SO technical specifications.
General
Address Bus Width
16b
Package/Case
SOIC
Core Architecture
dsPIC
Data Bus Width
16b
Density
12KB
Frequency
40MHz
Height
2.35mm
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
17.9mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
12KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
10
Number of Bits
16
Number of I/Os
21
Number of I2C Channels
1
Number of Programmable I/O
21
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Operating Supply Voltage
3.3V
Package Quantity
27
Packaging
Rail/Tube
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC33F
Supply Current
38mA
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ12GP202-I/SO Datasheet
Download the complete datasheet for Microchip DSPIC33FJ12GP202-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

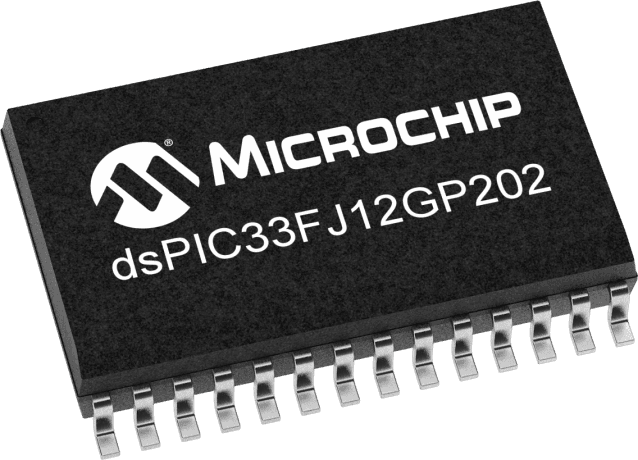

Product Images
