16-bit dsPIC microcontroller featuring 40MHz operation and 12KB FLASH memory. This MCU offers 21 programmable I/Os, multiple communication interfaces including I2C, SPI, and UART, and 10 ADC channels. Designed for through-hole mounting in a 28-pin PDIP package, it operates from a 3V to 3.6V supply and includes peripherals like PWM and a watchdog timer.
Frequency40MHz
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ12GP202-I/SP technical specifications.
General
Package/Case
DIP
Core Architecture
dsPIC
Data Bus Width
16b
Density
12KB
Frequency
40MHz
Height
0.15inch
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
35.56mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Memory Size
12KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
10
Number of Bits
16
Number of I/Os
21
Number of I2C Channels
1
Number of Programmable I/O
21
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 33F
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ12GP202-I/SP Datasheet
Download the complete datasheet for Microchip DSPIC33FJ12GP202-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

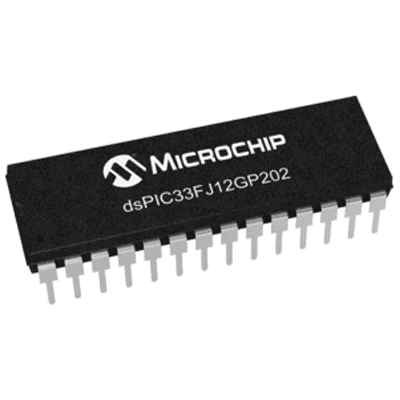

Product Images
