16-bit dsPIC microcontroller featuring 40MHz operation and 12KB FLASH memory. This surface mount SOIC-28 package offers 21 programmable I/O pins, 1KB RAM, and integrated I2C, SPI, IrDA, UART, and USART interfaces. Operating from 2.7V to 3.9V, it includes multiple peripherals such as PWM and WDT, with an operating temperature range of -40°C to 85°C.
Frequency40MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ12GP202T-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
40MHz
Interface
I2C, SPI, IrDA, UART, USART
Max Frequency
40MHz
Max Operating Temperature
85°C
Memory Size
12KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.9V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Programmable I/O
21
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
dsPIC™ 33F
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ12GP202T-I/SO Datasheet
Download the complete datasheet for Microchip DSPIC33FJ12GP202T-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

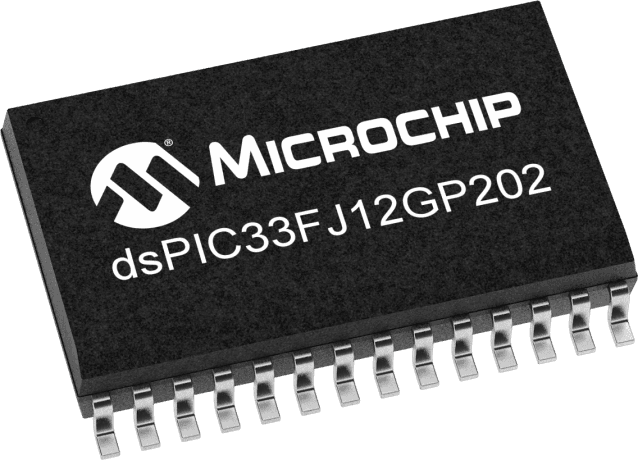

Product Images
