16-bit dsPIC microcontroller featuring 40MHz operation and 12KB FLASH memory. This surface-mount device offers 15 programmable I/Os, 4 ADC channels, and multiple communication interfaces including I2C, SPI, and UART. Integrated peripherals include PWM, WDT, and brown-out detection. Packaged in a 20-pin SSOP, this lead-free component operates from 3V to 3.6V.
Frequency40MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ12MC201-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
dsPIC
Data Bus Width
16b
Density
12KB
Frequency
40MHz
Height
1.85mm
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
7.5mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
12KB
Memory Type
FLASH,
Min Supply Voltage
3V
Mount
Surface Mount
Number of ADC Channels
4
Number of I/Os
15
Number of I2C Channels
1
Number of Programmable I/O
15
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
67
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 33F Series
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ12MC201-I/SS Datasheet
Download the complete datasheet for Microchip DSPIC33FJ12MC201-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

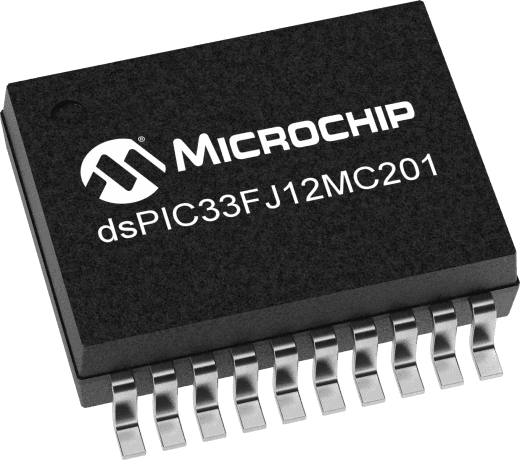

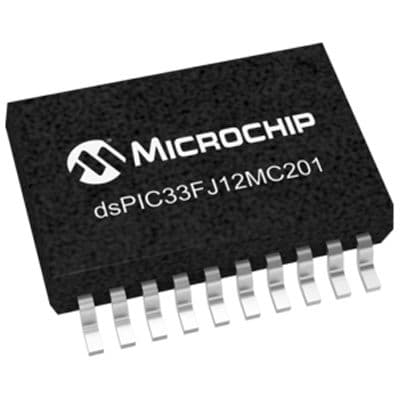

Product Images
