16-bit dsPIC microcontroller featuring a 40MHz core frequency. This surface-mount device offers 12KB of FLASH memory and 1KB of RAM. Integrated peripherals include I2C, SPI, IrDA, UART, and USART interfaces, along with 3 timers/counters and 21 programmable I/O pins. Operating voltage ranges from 3V to 3.6V, with an operating temperature range of -40°C to 85°C. The VQFN package is RoHS compliant.
Frequency40MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ12MC202T-I/ML technical specifications.
General
Package/Case
VQFN
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
40MHz
Interface
I2C, SPI, IrDA, UART, USART
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
12KB
Memory Type
FLASH,
Min Supply Voltage
3V
Mount
Surface Mount
Number of Programmable I/O
21
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
dsPIC™ 33F
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ12MC202T-I/ML Datasheet
Download the complete datasheet for Microchip DSPIC33FJ12MC202T-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

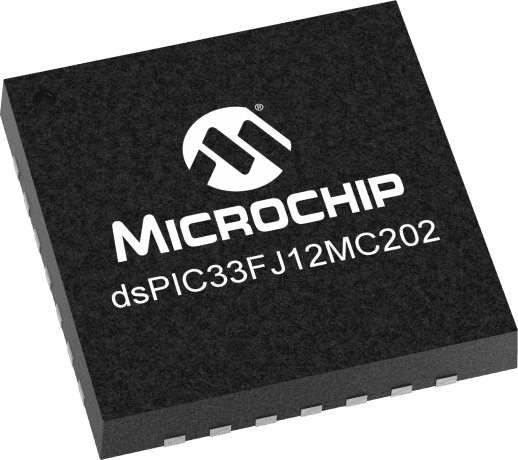

Product Images
