16-bit dsPIC™ microcontroller featuring 16KB FLASH memory and 1KB RAM. Operates at up to 32MHz with internal oscillator. Offers 21 I/Os and supports I2C, SPI, UART, IrDA, and USART interfaces. Includes 3 timers/counters, PWM, WDT, and brown-out detection. Packaged in a 28-pin QFN, operating from 3V to 3.6V, with a temperature range of -40°C to 85°C. RoHS compliant.
Frequency32MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ16GP102-I/ML technical specifications.
General
Package/Case
QFN
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
32MHz
Interface
I2C, SPI, UART, IrDA, USART
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Number of I/Os
21
Number of Programmable I/O
35
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
dsPIC™ 33F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ16GP102-I/ML Datasheet
Download the complete datasheet for Microchip DSPIC33FJ16GP102-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

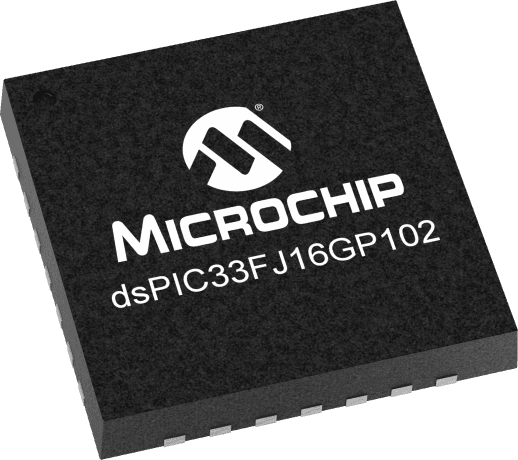

Product Images
