16-bit dsPIC digital signal processor featuring 16KB FLASH memory and 2KB RAM. Operates at a maximum frequency of 40MHz with a 3.3V supply voltage. Includes I2C, SPI, UART, IrDA, USART, and LIN interfaces, along with 21 programmable I/O pins and 3 timers/counters. Packaged in SOIC for tape and reel deployment, this RoHS compliant microcontroller offers a wide operating temperature range from -40°C to 85°C.
Frequency40MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ16GS502T-50I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
dsPIC
Data Bus Width
16b
Interface
I2C, SPI, UART, IrDA, USART, LIN
Max Frequency
40MHz
Max Operating Temperature
85°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of Programmable I/O
21
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Packaging
Tape and Reel
RAM Size
2KB
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ16GS502T-50I/SO Datasheet
Download the complete datasheet for Microchip DSPIC33FJ16GS502T-50I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

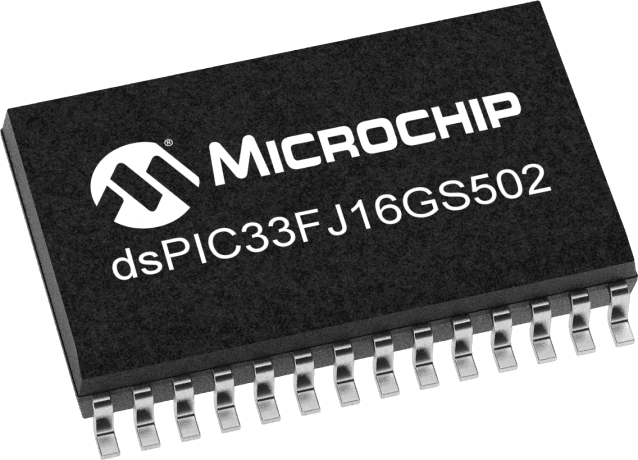

Product Images
