16-bit dsPIC microcontroller featuring 16KB FLASH memory and 1KB RAM. Operates at up to 32MHz with internal oscillator. Supports I2C, SPI, UART, IrDA, USART, and LIN interfaces. Includes 15 I/Os, 35 programmable I/Os, and 3 timers/counters. Packaged in a 20-pin PDIP with a 3.3V operating supply voltage, suitable for -40°C to 85°C. RoHS compliant.
Frequency32MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ16MC101-I/P technical specifications.
General
Package/Case
PDIP
Core Architecture
dsPIC
Data Bus Width
16b
Density
16KB
Frequency
32MHz
Interface
I2C, SPI, UART, IrDA, USART, LIN
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Number of I/Os
15
Number of Programmable I/O
35
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 33F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ16MC101-I/P Datasheet
Download the complete datasheet for Microchip DSPIC33FJ16MC101-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

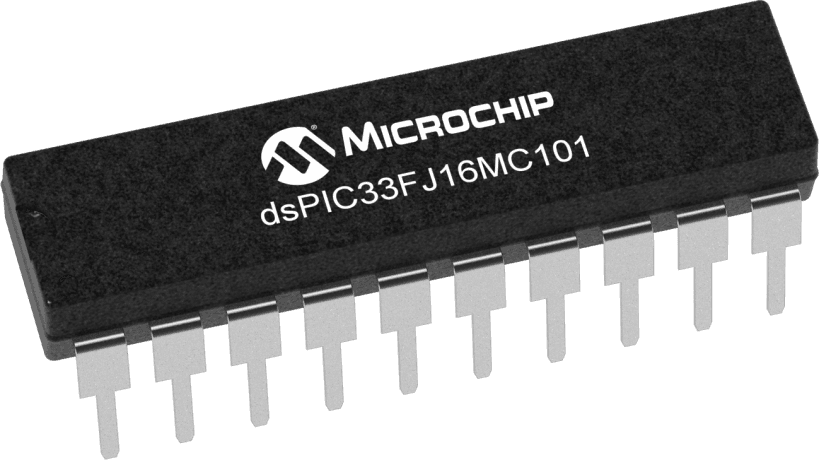

Product Images
