16-bit dsPIC microcontroller featuring 16KB FLASH memory and 1KB RAM. Operates at up to 32MHz with internal oscillator, supporting I2C, SPI, UART, USART, LIN, and IrDA interfaces. Includes 21 I/Os, 3 timers/counters, and peripherals like PWM, WDT, POR, and Brown-out Detect. Packaged in a lead-free SOIC-28 surface mount configuration, with an operating temperature range of -40°C to 85°C.
Frequency32MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ16MC102-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
dsPIC
Data Bus Width
16b
Density
16KB
Frequency
32MHz
Interface
I2C, SPI, UART, IrDA, USART, LIN
Lead Free
Lead Free
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
21
Number of Programmable I/O
35
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 33F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ16MC102-I/SO Datasheet
Download the complete datasheet for Microchip DSPIC33FJ16MC102-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

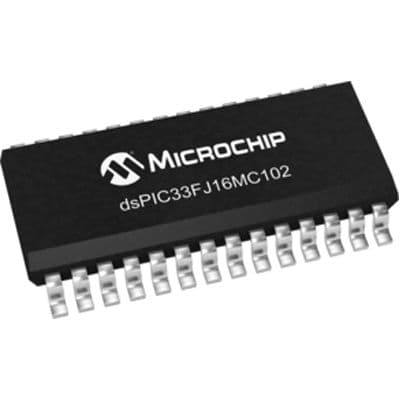

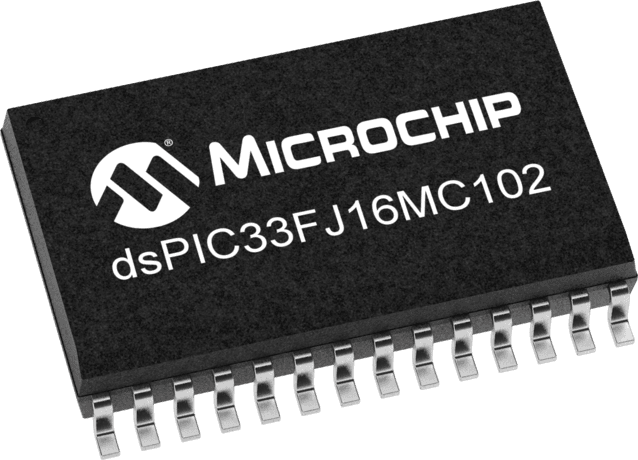

Product Images
