16-bit dsPIC microcontroller featuring 16KB FLASH memory and 2KB RAM, operating at up to 40MHz. This surface mount device offers 35 programmable I/O pins and supports I2C, SPI, IrDA, UART, USART, and LIN interfaces. Integrated peripherals include PWM, WDT, DMA, Brown-out Detect/Reset, and POR. Packaged in a 44-pin TQFP with dimensions of 10x10mm and 1mm height, it operates from 3V to 3.6V and is RoHS compliant.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ16MC304-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
16KB
Frequency
40MHz
Height
1mm
Interface
I2C, SPI, IrDA, UART, USART, LIN
Lead Free
Lead Free
Length
10mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of A/D Converters
1
Number of Bits
16
Number of I/Os
35
Number of I2C Channels
1
Number of Programmable I/O
35
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 33F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ16MC304-I/PT Datasheet
Download the complete datasheet for Microchip DSPIC33FJ16MC304-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

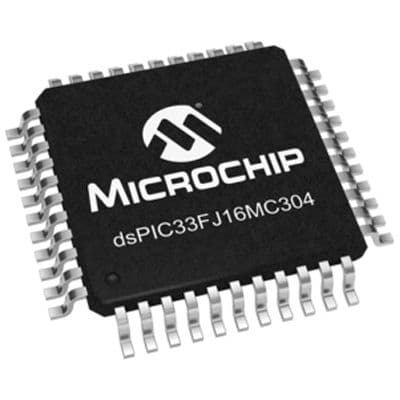

Product Images
