16-bit dsPIC microcontroller featuring 256KB FLASH memory and 16KB RAM, operating at up to 40MHz. This surface mount device offers 85 programmable I/Os, 32 ADC channels, and multiple communication interfaces including I2C, SPI, CAN, and UART. Integrated peripherals include PWM, DMA, and a watchdog timer, all housed in a 100-pin TQFP package.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ256GP510-I/PF technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
256KB
Frequency
40MHz
Height
1.05mm
Interface
I2C, SPI, CAN, UART, IrDA, USART, LIN
Lead Free
Lead Free
Length
14mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
256KB
Memory Type
FLASH,
Min Supply Voltage
3V
Mount
Surface Mount
Number of ADC Channels
32
Number of I/Os
85
Number of I2C Channels
2
Number of Programmable I/O
85
Number of SPI Channels
2
Number of Timers/Counters
9
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
Series
DSPIC
Watchdog Timer
Yes
Width
14mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ256GP510-I/PF Datasheet
Download the complete datasheet for Microchip DSPIC33FJ256GP510-I/PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

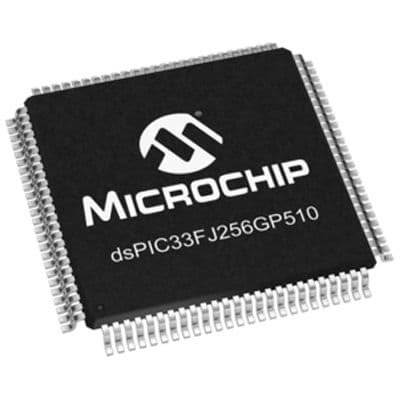

Product Images
