16-bit dsPIC™ microcontroller featuring 32KB FLASH memory and 2KB RAM. Operates at up to 32MHz with an internal oscillator. Offers 8 ADC channels, 21 programmable I/Os, and multiple communication interfaces including I2C, SPI, and UART. Packaged in a lead-free SOIC for surface mounting, with a wide operating temperature range of -40°C to 85°C and a supply voltage of 3V to 3.6V. Includes peripherals like PWM and Watchdog Timer.
Frequency32MHz
PackageSOIC
Current10mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ32GP102-I/SO technical specifications.
General
Address Bus Width
16b
Package/Case
SOIC
Core Architecture
dsPIC
Data Bus Width
16b
Density
32KB
Frequency
32MHz
Height
2.35mm
Interface
I2C, SPI, UART, IrDA, USART
Lead Free
Lead Free
Length
17.9mm
Max Frequency
7.37MHz
Max Operating Temperature
85°C
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of ADC Channels
8
Number of I/Os
21
Number of I2C Channels
1
Number of Programmable I/O
21
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
1
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 33F
Supply Current
10mA
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ32GP102-I/SO Datasheet
Download the complete datasheet for Microchip DSPIC33FJ32GP102-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

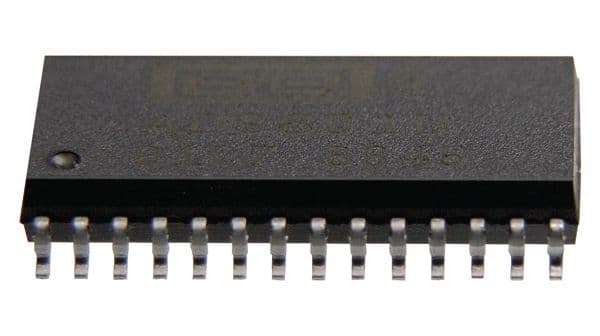

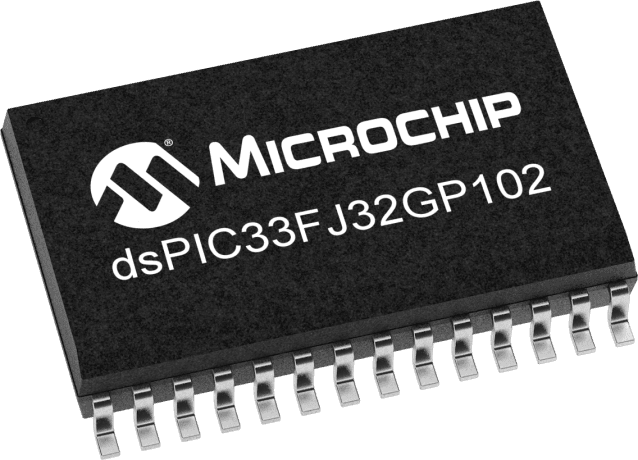

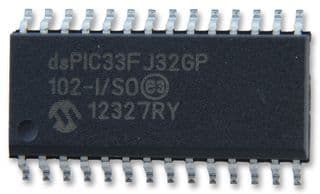

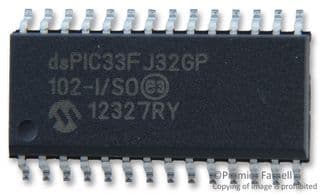

Product Images
