16-bit dsPIC microcontroller featuring 32KB FLASH memory and 2KB RAM. Operates at a maximum frequency of 40MHz with a 16-bit data bus width. Supports I2C, SPI, IrDA, UART, and USART interfaces. Includes 3 timers/counters and 21 programmable I/O pins. Surface mount VQFN package with an operating voltage range of 2.7V to 3.9V. Suitable for applications requiring robust peripheral integration and efficient processing.
Frequency40MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ32GP202T-I/MM technical specifications.
General
Package/Case
VQFN
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
40MHz
Interface
I2C, SPI, IrDA, UART, USART
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.9V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Programmable I/O
21
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
Yes
Series
dsPIC™ 33F
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ32GP202T-I/MM Datasheet
Download the complete datasheet for Microchip DSPIC33FJ32GP202T-I/MM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

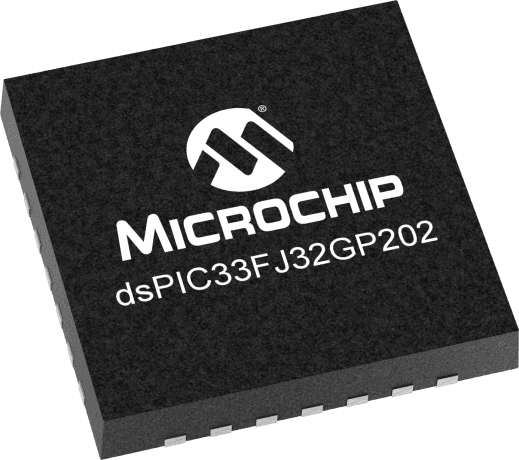

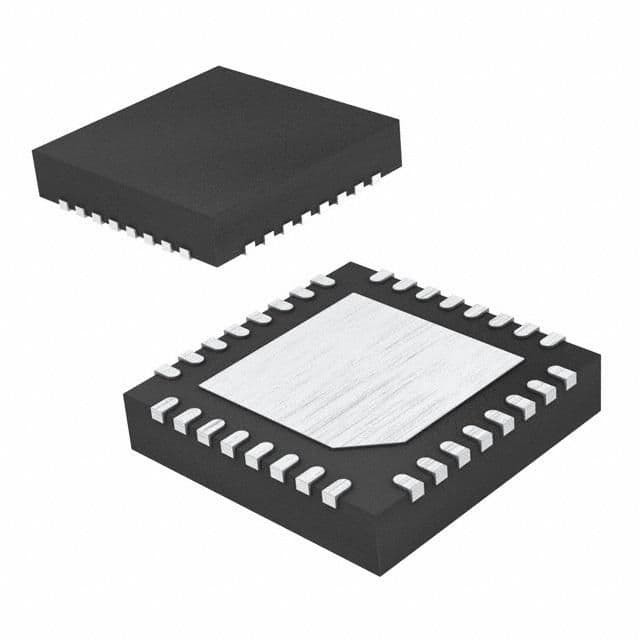

Product Images
