16-bit dsPIC microcontroller featuring 32KB FLASH memory and 2KB RAM. Operates at up to 40MHz with a 3.3V supply voltage. Includes I2C, SPI, UART, IrDA, and USART interfaces, along with 3 timers/counters and 21 I/Os. Peripherals include Brown-out Detect/Reset, POR, PWM, WDT, and DMA. Packaged in a 28-pin SSOP for surface mounting, with an operating temperature range of -40°C to 85°C.
Frequency40MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ32GP202T-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
40MHz
Interface
I2C, SPI, UART, IrDA, USART
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
21
Number of Programmable I/O
35
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
Yes
Series
dsPIC™ 33F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ32GP202T-I/SS Datasheet
Download the complete datasheet for Microchip DSPIC33FJ32GP202T-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

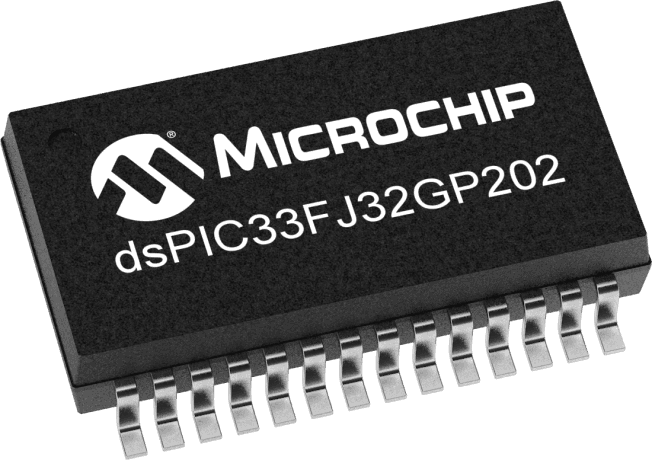

Product Images
