16-bit dsPIC microcontroller featuring 40MHz operation and 32KB FLASH memory. This through-hole DIP-28 packaged MCU offers 21 programmable I/Os, 10 ADC channels, and multiple communication interfaces including I2C, SPI, IrDA, and UART. Integrated peripherals include PWM, WDT, and DMA, with an operating voltage range of 3V to 3.6V.
Frequency40MHz
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ32GP302-I/SP technical specifications.
General
Package/Case
DIP
Core Architecture
dsPIC
Data Bus Width
16b
Density
32KB
Frequency
40MHz
Height
0.15inch
Interface
I2C, SPI, IrDA, UART, USART
Length
35.56mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
10
Number of Bits
16
Number of I/Os
21
Number of I2C Channels
1
Number of Programmable I/O
21
Number of PWM Channels
4
Number of SPI Channels
2
Number of Timers/Counters
3
Number of UART Channels
2
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
4KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 33F
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ32GP302-I/SP Datasheet
Download the complete datasheet for Microchip DSPIC33FJ32GP302-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

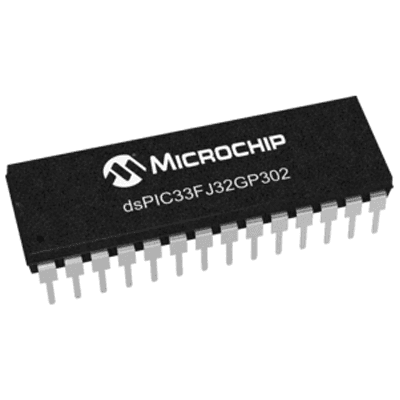

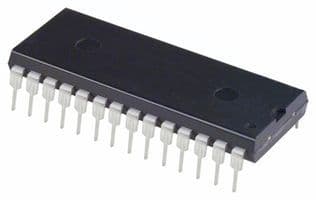

Product Images
