16-bit dsPIC™ 33F microcontroller featuring a 40 MHz core speed. This FLASH memory microcontroller offers 32KB of program memory and 4KB of RAM. Integrated peripherals include I2C, SPI, IrDA, UART, and USART interfaces, along with PWM, DMA, and WDT. Designed for surface mounting in a 28-pin SOIC package, it operates from a 2.7V to 3.9V supply voltage.
Frequency40MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ32GP302T-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
40MHz
Interface
I2C, SPI, IrDA, UART, USART
Max Frequency
40MHz
Max Operating Temperature
85°C
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.9V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Programmable I/O
21
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Series
dsPIC™ 33F
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ32GP302T-I/SO Datasheet
Download the complete datasheet for Microchip DSPIC33FJ32GP302T-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

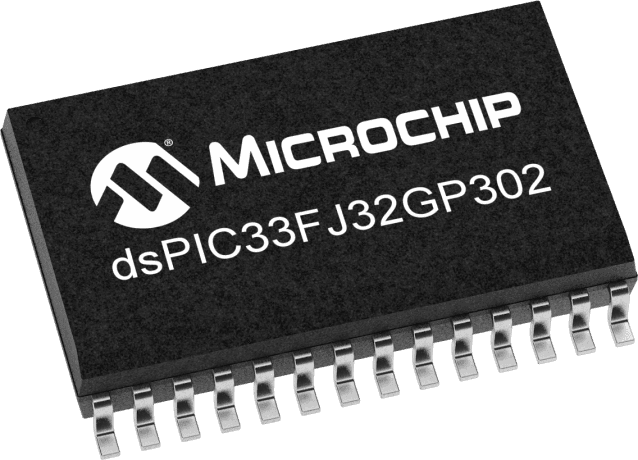

Product Images
