16-bit dsPIC microcontroller featuring 32KB FLASH memory and 2KB RAM. Operates at up to 32MHz with 35 programmable I/O pins. Includes 14 ADC channels, 2 PWM channels, 5 timers/counters, and multiple communication interfaces (I2C, SPI, UART, USART, LIN, IrDA). Packaged in a 10mm x 10mm TQFP, this RoHS compliant component offers a wide operating temperature range of -40°C to 85°C.
Frequency32MHz
PackageTQFP
Current10mA
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ32MC104-I/PT technical specifications.
General
Address Bus Width
16b
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
32KB
Frequency
32MHz
Height
1.05mm
Interface
I2C, SPI, UART, IrDA, USART, LIN
Lead Free
Lead Free
Length
10mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
3V
Number of ADC Channels
14
Number of I/Os
35
Number of I2C Channels
1
Number of Programmable I/O
35
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
1
Operating Supply Voltage
3.3V
Packaging
Tray
Peripherals
PWM
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
10mA
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ32MC104-I/PT Datasheet
Download the complete datasheet for Microchip DSPIC33FJ32MC104-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

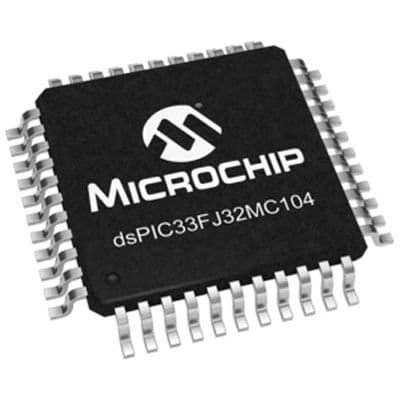

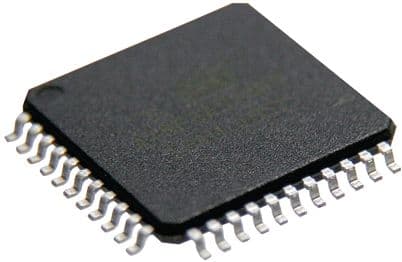

Product Images
