16-bit dsPIC™ microcontroller featuring 32KB FLASH memory and 2KB RAM. Operates at up to 40MHz with a 16-bit data bus. Offers I2C, SPI, IrDA, UART, and USART interfaces. Includes 21 programmable I/O pins and 3 timers/counters. Packaged in a 28-pin SOIC surface mount case, operating from 2.7V to 3.9V, with a temperature range of -40°C to 150°C.
Frequency40MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ32MC202-H/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
40MHz
Interface
I2C, SPI, IrDA, UART, USART
Max Frequency
40MHz
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.9V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Programmable I/O
21
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
1
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, dsPIC™ 33F
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ32MC202-H/SO Datasheet
Download the complete datasheet for Microchip DSPIC33FJ32MC202-H/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

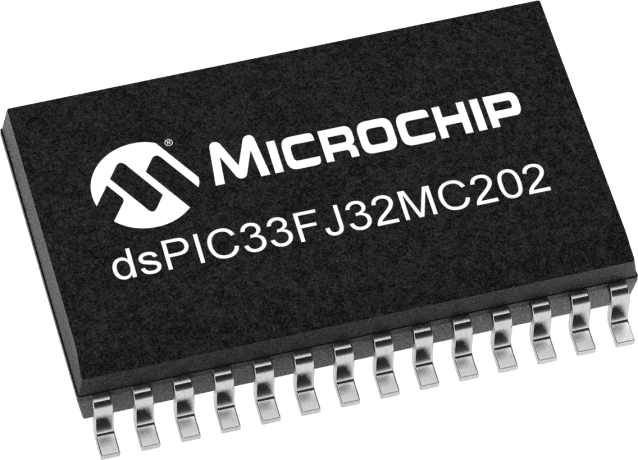

Product Images
