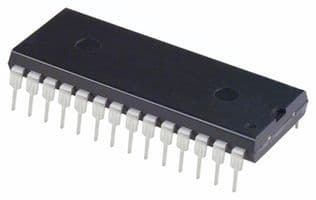

16-bit dsPIC microcontroller featuring 64KB FLASH memory and 8KB RAM, operating at up to 40MHz. This through-hole DIP package offers 21 programmable I/Os, 10 ADC channels, and 4 PWM channels. Integrated peripherals include I2C, SPI, UART, USART, IrDA, DMA, Brown-out Detect/Reset, POR, and a Watchdog Timer. Designed for a 3V to 3.6V supply, it operates from -40°C to 85°C.
Frequency40MHz
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ64GP202-I/SP technical specifications.
General
Package/Case
DIP
Core Architecture
dsPIC
Data Bus Width
16b
Density
64KB
Frequency
40MHz
Height
0.15inch
Interface
I2C, SPI, IrDA, UART, USART
Length
35.56mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Through Hole
Number of ADC Channels
10
Number of I/Os
21
Number of I2C Channels
1
Number of Programmable I/O
21
Number of PWM Channels
4
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 33F
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ64GP202-I/SP Datasheet
Download the complete datasheet for Microchip DSPIC33FJ64GP202-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
