16-bit Digital Signal Controller (DSC) featuring a 40MHz core, 64KB FLASH memory, and 16KB RAM. This surface-mount microcontroller offers 53 programmable I/Os, 18 ADC channels, and 8 PWM channels. Integrated peripherals include I2C, SPI, UART, USART, LIN, IrDA, DMA, and a watchdog timer. Operates from a 3V to 3.6V supply voltage with a maximum operating temperature of 85°C.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ64GP306A-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
64KB
Frequency
40MHz
Height
1.05mm
Interface
I2C, SPI, IrDA, UART, USART, LIN
Lead Free
Lead Free
Length
10mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Supply Voltage
3V
Mount
Surface Mount
Number of ADC Channels
18
Number of I/Os
53
Number of I2C Channels
2
Number of Programmable I/O
53
Number of PWM Channels
8
Number of SPI Channels
2
Number of Timers/Counters
9
Number of UART Channels
2
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
Series
DSPIC
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ64GP306A-I/PT Datasheet
Download the complete datasheet for Microchip DSPIC33FJ64GP306A-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

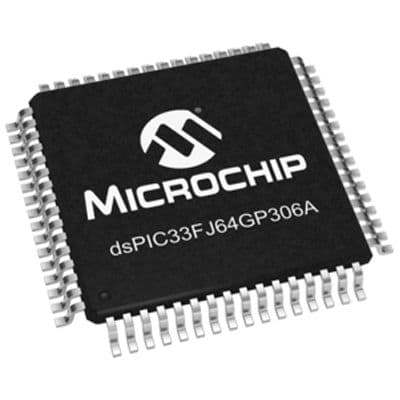

Product Images
