16-bit dsPIC microcontroller featuring 40MHz operation and 64KB FLASH memory. This through-hole DIP package offers 21 programmable I/O pins and 5 timers/counters. Integrated peripherals include PWM, WDT, DMA, and multiple communication interfaces such as I2C, SPI, UART, and CAN. Operating voltage ranges from 2.7V to 3.9V, with an extended temperature range of -40°C to 125°C.
Frequency40MHz
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ64MC802-E/SP technical specifications.
General
Package/Case
DIP
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
40MHz
Interface
I2C, SPI, IrDA, UART, USART, CAN
Max Frequency
40MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.9V
Memory Size
64KB
Memory Type
FLASH,
Min Supply Voltage
2.7V
Mount
Through Hole
Number of Programmable I/O
21
Number of Timers/Counters
5
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
16KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, dsPIC™ 33F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ64MC802-E/SP Datasheet
Download the complete datasheet for Microchip DSPIC33FJ64MC802-E/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

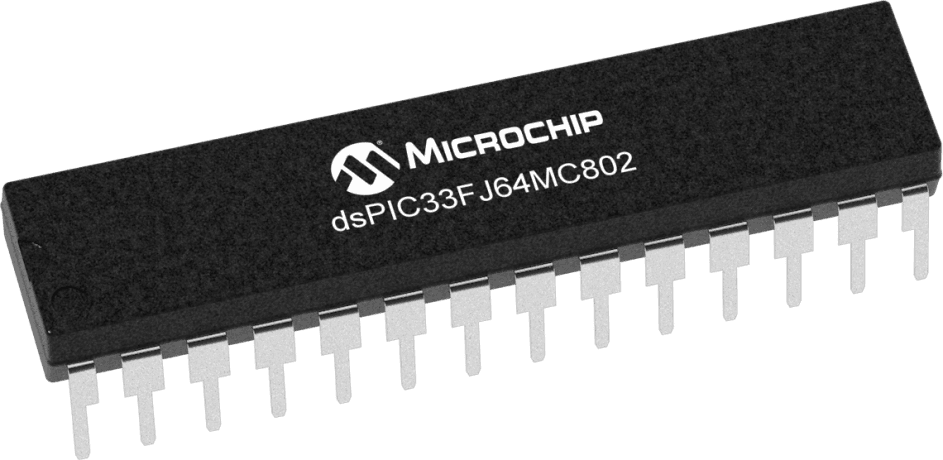

Product Images
