16-bit dsPIC microcontroller featuring 64KB FLASH memory and 16KB RAM, operating at a maximum frequency of 40MHz. This through-hole component offers 21 programmable I/O pins and supports multiple interfaces including I2C, SPI, UART, USART, CAN, and LIN. Equipped with 6 analog-to-digital converter channels and 5 timers/counters, it includes integrated peripherals such as PWM, WDT, and DMA. The device operates within a supply voltage range of 3V to 3.6V and is RoHS compliant.
Frequency40MHz
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ64MC802-I/SP technical specifications.
General
Package/Case
DIP
Core Architecture
dsPIC
Data Bus Width
16b
Density
64KB
Frequency
40MHz
Height
0.15inch
Interface
I2C, SPI, IrDA, UART, USART, CAN, LIN
Lead Free
Lead Free
Length
35.56mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
6
Number of Bits
16
Number of I/Os
21
Number of I2C Channels
1
Number of Programmable I/O
21
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 33F
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ64MC802-I/SP Datasheet
Download the complete datasheet for Microchip DSPIC33FJ64MC802-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

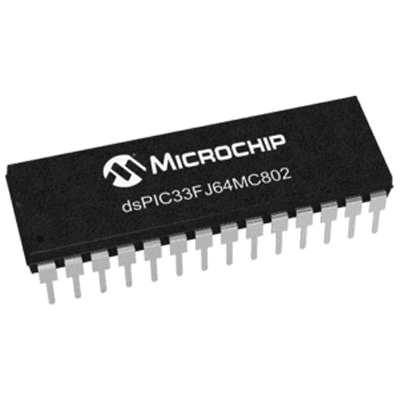

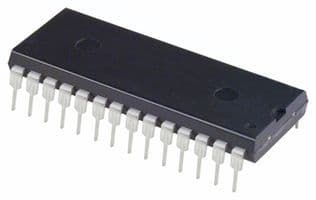

Product Images
