16-bit dsPIC™ microcontroller featuring 64KB FLASH memory and 16KB RAM. Operates at up to 40MHz with 40 MIPS performance. Includes multiple communication interfaces such as I2C, SPI, UART, USART, CAN, and LIN. Equipped with 35 programmable I/Os, 5 timers/counters, and integrated peripherals including PWM, WDT, and DMA. Packaged in a 44-TQFP surface mount case, operating from 3V to 3.6V supply voltage.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ64MC804-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
64KB
Frequency
40MHz
Height
1mm
Interface
I2C, SPI, IrDA, UART, USART, CAN, LIN
Lead Free
Lead Free
Length
10mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
35
Number of I2C Channels
1
Number of Programmable I/O
35
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 33F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ64MC804-I/PT Datasheet
Download the complete datasheet for Microchip DSPIC33FJ64MC804-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

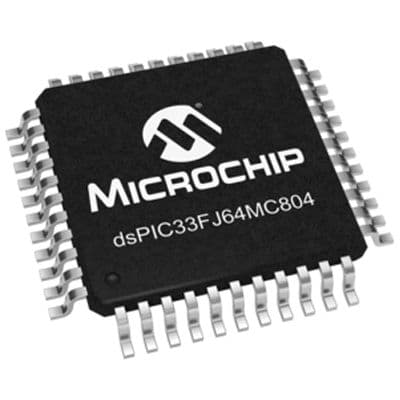

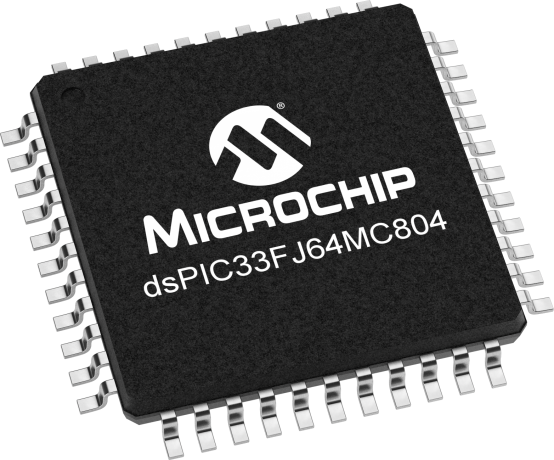

Product Images
