10Mbps Ethernet controller with SPI interface, designed for surface mount applications in an SSOP package. Features a wide operating temperature range of -40°C to 85°C and a supply voltage of 3.1V to 3.6V, with a nominal 3.45V. This RoHS compliant integrated circuit offers a single network controller function and operates with a typical supply current of 160mA.
PackageSSOP
Current180mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ENC28J60-I/SS technical specifications.
General
| Package/Case | SSOP |
| Data Rate | 10Mbps |
| Height | 0.073inch |
| Interface | SPI |
| Lead Free | Lead Free |
| Length | 0.413inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3.1V |
| Mount | Surface Mount |
| Number of Functions | 1 |
| Operating Supply Current | 160mA |
| Operating Supply Voltage | 3.3V |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 180mA |
| Supply Voltage-Nom | 3.45V |
| Weight | 0.080001oz |
| Width | 0.22inch |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ENC28J60-I/SS Datasheet
Download the complete datasheet for Microchip ENC28J60-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

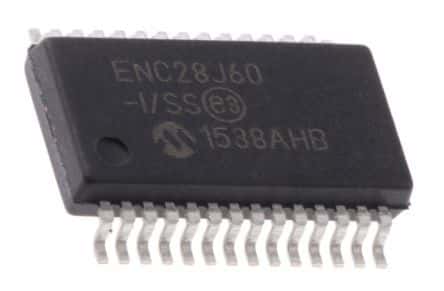

Product Images
