Single-chip Ethernet controller supporting 10Mbps and 100Mbps speeds. Features SPI and parallel interfaces, operating from a 3V to 3.6V supply with a typical 3.3V. Encased in a 44-pin TQFP package for surface mounting, this lead-free, RoHS-compliant component functions across a -40°C to 85°C temperature range. Maximum input voltage is 5.5V, with a maximum supply current of 117mA.
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ENC424J600T-I/PT technical specifications.
General
Package/Case
TQFP
Interface
SPI, Parallel
Lead Free
Lead Free
Max Input Voltage
5.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
117mA
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Operating Supply Current
96mA
Operating Supply Voltage
3.3V
Package Quantity
1200
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip ENC424J600T-I/PT Datasheet
Download the complete datasheet for Microchip ENC424J600T-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

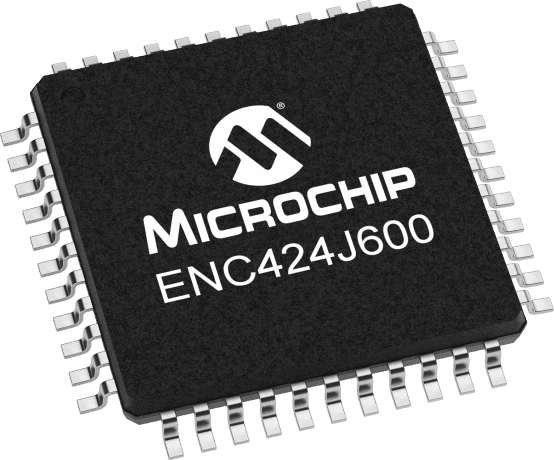

Product Images
