The HCS515/P is a dual output IC packaged in a 0.300 inch plastic DIP-14. It has a maximum operating temperature of 70°C and a minimum operating temperature of 0°C. The IC is available in a package quantity of 30 and is packaged in rail/Tube. It is RoHS compliant and has a lead free status of contains lead.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip HCS515/P technical specifications.
General
| Package/Case | PDIP |
| Height | 3.3mm |
| Lead Free | Contains Lead |
| Length | 19.05mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Number of Outputs | 2 |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip HCS515/P Datasheet
Download the complete datasheet for Microchip HCS515/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

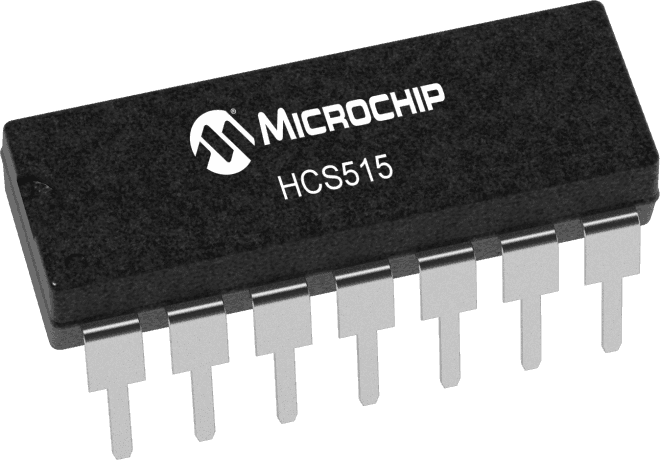

Product Images
