MICROCHIP

HV5222PG-G

Datasheet

32-Bit CMOS Shift Register Driver, PQFP, 13.2V

Microchip

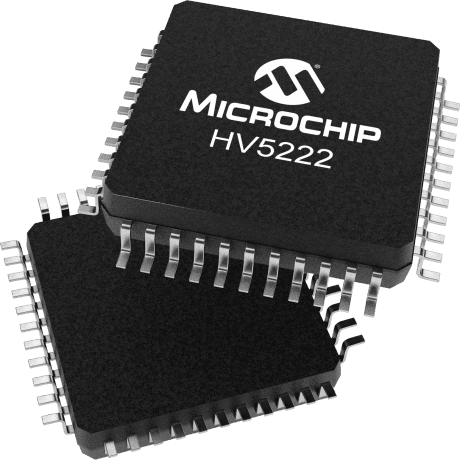

HV5222PG-G

Name: HV5222PG-G Microchip
Brand: Microchip
SKU: HV5222PG-G

32-Bit CMOS Shift Register Driver, PQFP, 13.2V

32-bit EL display driver IC featuring CMOS technology, designed for surface mount applications in a PQFP package. This unidirectional interface IC offers a 12V operating supply voltage range of 10.8V to 13.2V, with a nominal supply current of 15mA and a maximum of 100uA. It incorporates a 32-bit shift register logic function, providing 32 output lines from a single input line, and exhibits a propagation delay and turn-on delay time of 100ns. Operating across a temperature range of -40°C to 85°C, this component is ideal for electronic display driving solutions.

PackagePQFP

MountingSurface Mount

Quick Jump:

Technical Specifications

Microchip HV5222PG-G technical specifications.

General

Package/Case	PQFP
Direction	Unidirectional
Height	2mm
Length	10mm
Logic Function	Shift Register
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Supply Current	100uA
Max Supply Voltage	13.2V
Min Supply Voltage	10.8V
Mount	Surface Mount
Nominal Supply Current	15mA
Number of Bits	32
Number of Bits per Element	32
Number of Elements	1
Number of Input Lines	1
Number of Output Lines	32
Operating Supply Voltage	12V
Package Quantity	96
Packaging	Tray
Propagation Delay	100ns
Technology	CMOS
Turn-On Delay Time	100ns
Weight	0.017588oz
Width	10mm
