Technical Specifications
Microchip HV9910CNG-G-M934 technical specifications.
General
| Package/Case | SOIC |
| Dimming | Analog, PWM |
| Frequency | 100kHz |
| Max Input Voltage | 450V |
| Min Input Voltage | 15V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.3W |
| Max Supply Current | 1.5mA |
| Max Supply Voltage | 450V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Operating Frequency | 25 KHz |
| Output Type | Frequency |
| Package Quantity | 2600 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Weight | 0.023492oz |
Compliance
| RoHS | Compliant |
Datasheet
Microchip HV9910CNG-G-M934 Datasheet
Download the complete datasheet for Microchip HV9910CNG-G-M934 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

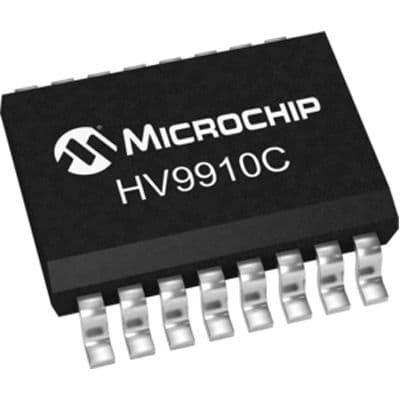

Product Images
