PackageQFN
Current53mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip KSZ8041NLITR technical specifications.
General
Package/Case
QFN
Data Rate
100Mbps
Height
0.85mm
Length
5mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
58.3mA
Max Supply Voltage
3.465V
Min Supply Voltage
3.135V
Mount
Surface Mount
Number of Channels
1
Number of Functions
1
Number of Transceivers
1
Operating Supply Voltage
3.3V
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
53mA
Supply Voltage-Nom
3.465V
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Microchip KSZ8041NLITR Datasheet
Download the complete datasheet for Microchip KSZ8041NLITR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

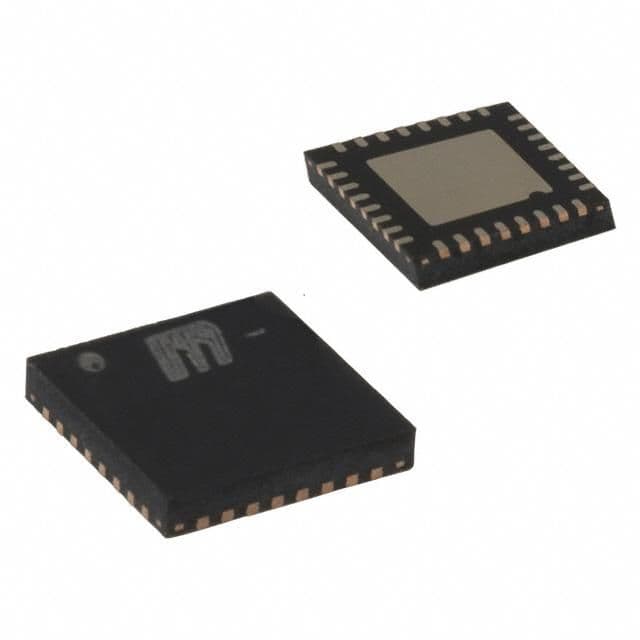

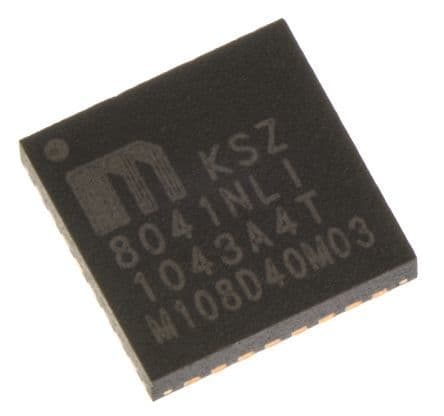

Product Images
