The KSZ8041RNLI-TR is a 100Mbps Ethernet PHY from Microchip, packaged in a QFN-32 lead-free package. It operates over a temperature range of -40°C to 85°C and has a maximum supply current of 53mA. The device is RoHS compliant and suitable for surface mount applications.
PackageQFN
Current53mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip KSZ8041RNLI-TR technical specifications.
General
| Package/Case | QFN |
| Data Rate | 100Mbps |
| Height | 900um |
| Interface | Ethernet |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 53mA |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 3.135V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Functions | 1 |
| Number of Transceivers | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 53mA |
| Supply Voltage-Nom | 3.465V |
Compliance
| RoHS | Compliant |
Datasheet
Microchip KSZ8041RNLI-TR Datasheet
Download the complete datasheet for Microchip KSZ8041RNLI-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

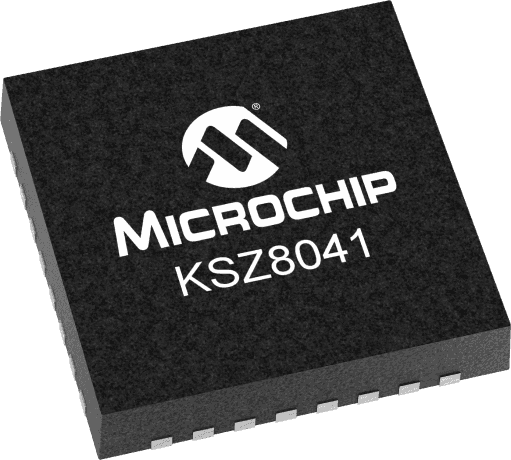

Product Images
