1-Channel Ethernet PHY for 10/100Mbps data rates, supporting full-duplex operation. This surface-mount integrated circuit features a 48-pin LQFP package with dimensions of 7mm x 7mm x 1.4mm. Operates with a 3.3V nominal supply voltage, up to 3.63V maximum, and a maximum supply current of 151mA. RoHS compliant and lead-free, it is suitable for a wide operating temperature range of 0°C to 70°C.
PackageLQFP
Current151mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip KSZ8721BL technical specifications.
General
Package/Case
LQFP
Data Rate
100Mbps
Height
1.4mm
Interface
Ethernet
Lead Free
Lead Free
Length
7mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Current
151mA
Max Supply Voltage
3.63V
Min Supply Voltage
3.3V
Mount
Surface Mount
Number of Channels
1
Number of Drivers
1
Number of Functions
1
Number of I/Os
8
Number of Ports
1
Number of Receivers
1
Number of Transceivers
1
Package Quantity
250
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
151mA
Supply Voltage-Nom
3.3V
Termination
SMD/SMT
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Microchip KSZ8721BL Datasheet
Download the complete datasheet for Microchip KSZ8721BL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

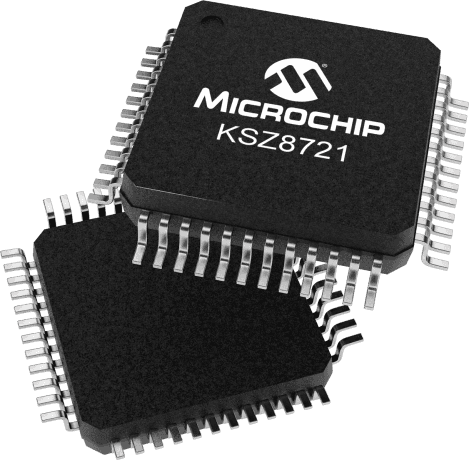

Product Images
