100Mbps Ethernet PHY, 1-channel, full duplex transceiver. Features a 48-pin LQFP surface mount package with dimensions of 7mm x 7mm x 1.4mm. Operates with a supply voltage of 2.97V to 3.63V, nominal 3.3V, and a maximum supply current of 151mA. Suitable for operation between 0°C and 70°C, this RoHS compliant component is supplied on tape and reel.
PackageLQFP
Current151mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip KSZ8721BL-TR technical specifications.
General
| Package/Case | LQFP |
| Data Rate | 100Mbps |
| Height | 1.4mm |
| Lead Free | Lead Free |
| Length | 7mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 151mA |
| Max Supply Voltage | 3.63V |
| Min Supply Voltage | 2.97V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Functions | 1 |
| Number of Transceivers | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 151mA |
| Supply Voltage-Nom | 3.3V |
| Width | 7mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip KSZ8721BL-TR Datasheet
Download the complete datasheet for Microchip KSZ8721BL-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

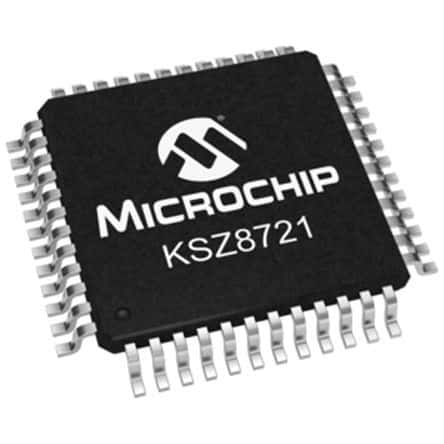

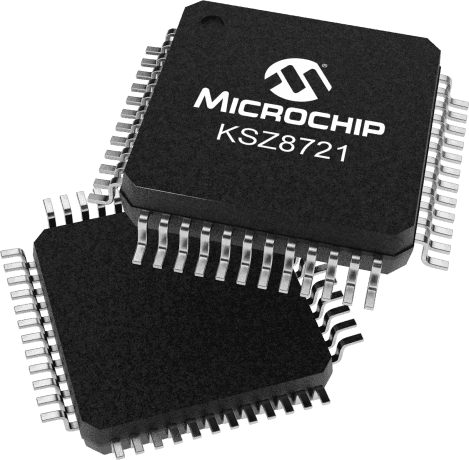

Product Images
