10/100Mbps Ethernet PHY, 1-channel, full duplex, surface mount QFN package. Features a 1.6V to 3.6V supply voltage range with a nominal 3.3V, and a maximum supply current of 150mA. Operates from 0°C to 85°C. RoHS compliant and lead-free.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip LAN8720A-CP technical specifications.
General
| Package/Case | QFN |
| Data Rate | 100Mbps |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 150mA |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.6V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Package Quantity | 490 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Voltage-Nom | 3.3V |
Compliance
| RoHS | Compliant |
Datasheet
Microchip LAN8720A-CP Datasheet
Download the complete datasheet for Microchip LAN8720A-CP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

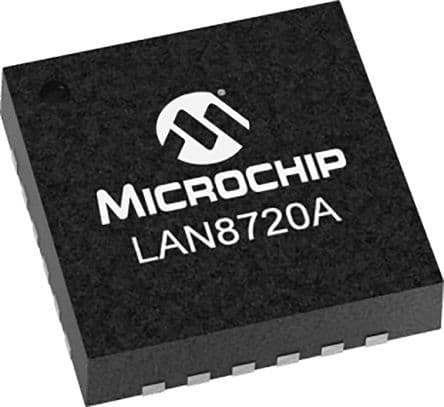

Product Images
