Single-chip Ethernet controller supporting 10Mbps and 100Mbps data rates. Features a parallel interface and a single transceiver. Operates from a 3V to 3.6V supply voltage, with a typical operating voltage of 3.3V. Packaged in a 56-pin VQFN with dimensions of 8mm x 8mm x 0.95mm. Designed for surface mount applications, with a maximum operating temperature of 70°C.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip LAN9221-ABZJ technical specifications.
General
Package/Case
QFN
Data Rate
100Mbps
Height
0.95mm
Interface
Parallel
Lead Free
Lead Free
Length
8mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Current
137.3mA
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Transceivers
1
Operating Supply Current
85mA
Operating Supply Voltage
3.3V
Package Quantity
260
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
Width
8mm
Compliance
RoHS
Compliant
Datasheet
Microchip LAN9221-ABZJ Datasheet
Download the complete datasheet for Microchip LAN9221-ABZJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

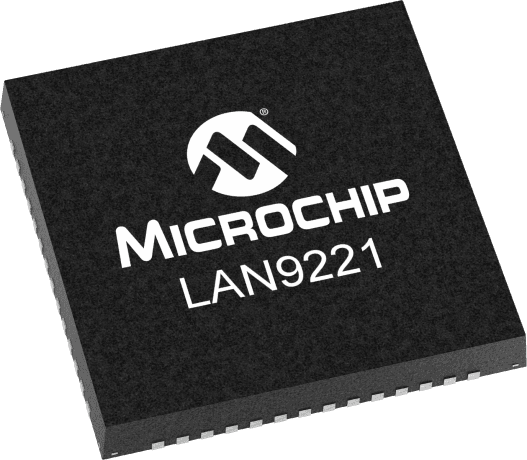

Product Images
