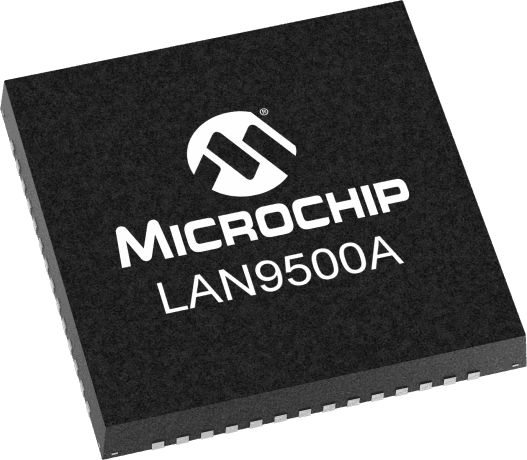

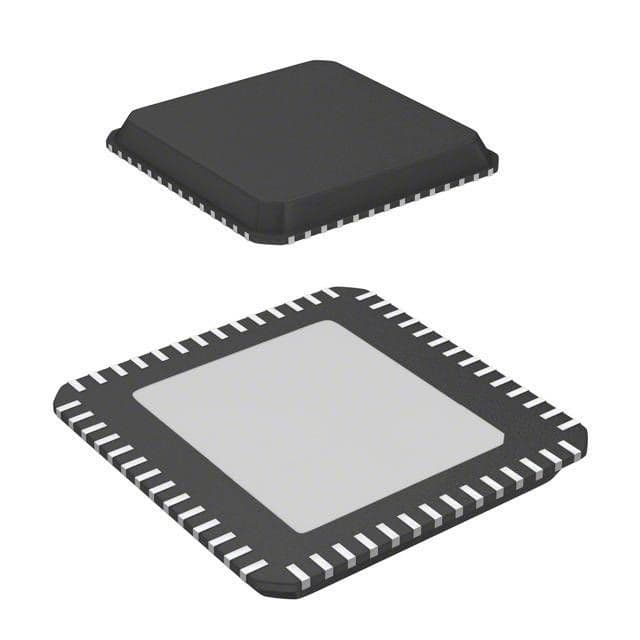

Single-chip Ethernet controller supporting 10/100 Mbps speeds over 10BASE-T and 100BASE-TX physical networks. Compliant with IEEE 802.3 and 802.3u standards, this interface IC features USB host connectivity and auto-negotiation for flexible network integration. Operates in full or half duplex modes with a supply voltage range of 3V to 3.6V, typically 3.3V. Housed in a 56-pin VQFN EP package, it functions across an industrial temperature range of -40°C to 85°C.
PackageVQFN EP
Quick Jump:
Technical Specifications
Microchip LAN9500Ai-ABZJ-TR technical specifications.
General
Physical Network Type
10BASE-T|100BASE-TX
Category
Single Chip
Ethernet Speed
10|100Mbps
Host Interface
USB
Auto-Negotiation
Yes
Standard Supported
IEEE802.3|802.3u
DMA Support
No
Communication Mode
Full Duplex|Half Duplex
Min Operating Temperature
-40°C
Max Operating Temperature
85°C
Max Operating Supply Voltage
3.6V
Maximum Power Dissipation
0.257(Typ)W
Min Operating Supply Voltage
3V
Typical Operating Supply Voltage
3.3V
Pin Count
56
Package/Case
VQFN EP
Package Family Name
QFN
Compliance
RoHS
Yes
RoHS Version
2011/65/EU, 2015/863
