PackageDIP
Current5mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip LM2574YN technical specifications.
General
Package/Case
DIP
Lead Free
Lead Free
Max Input Voltage
40V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Output Voltage
37V
Min Output Voltage
1.23V
Mount
Through Hole
Number of Outputs
1
Output Configuration
Positive
Output Current
500mA
Output Type
Adjustable
Output Voltage
37V
Package Quantity
50
Packaging
Rail/Tube
RoHS Compliant
Yes
Supply Current
5mA
Switching Frequency-Max
58kHz
Synchronous Rectifier
No
Compliance
RoHS
Compliant
Datasheet
Microchip LM2574YN Datasheet
Download the complete datasheet for Microchip LM2574YN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

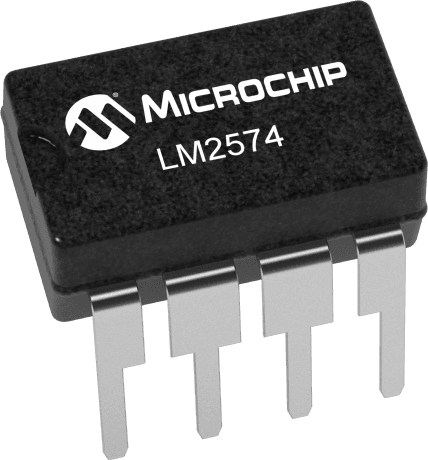

Product Images
